Coffee Packaging Machine
Introduction:
The standard machine adopts the fully ultrasonic sealing, specially designed for drip coffee bag packing.
Features:
● The machine is installed screw filling device. The barrel is equipped with a stir.This device is more suitable for coffee materials with high measurement accuracy.
● Ultrasonic is suitable for sealing and cutting all non-woven packaging materials.
● The machine is equipped with date ribbon printing device.
Technical specification:
|
Machine Name |
Coffee Packaging Machine |
|
Working speed |
About 40 bags/min(Depend on material) |
|
Filling accuracy |
±0.2 g |
|
Weight range |
8g-12g |
|
Inner bag material |
Drip coffee film, PLA, non-woven fabrics and other ultrasonic materials |
|
Outer bag material |
Composite film, pure aluminum film, paper aluminum film, PE film and other heat sealable materials |
|
Inner bag film width |
180mm or customized |
|
Outer bag film width |
200mm or customized |
|
Air pressure |
Air pressure |
|
Power supply |
220V、50HZ、1PH、3KW |
|
Machine size |
1422mm*830mm*2228mm |
|
Machine weight |
About 720kg |
Configuration:
|
Name |
Brand |
|
PLC |
Mitsubishi (Japan) |
|
Feeding Motor |
Matsooka (China) |
|
Stepper Motor |
Leadshine (USA) |
|
HMI |
Weinview (Taiwan) |
|
Switching Mode Power Supply |
Mibbo (China) |
|
Cylinder |
Airtac (Taiwan) |
|
Electromagnetic Valve |
Airtac (Taiwan) |
Detailed Photo：

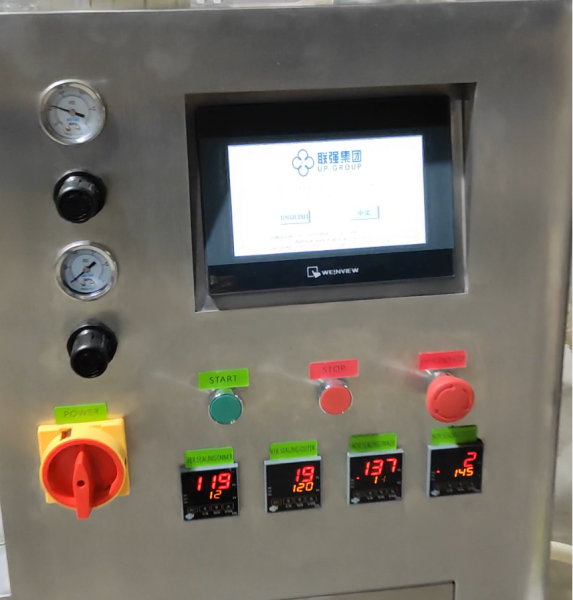

Touch screen and temperature control

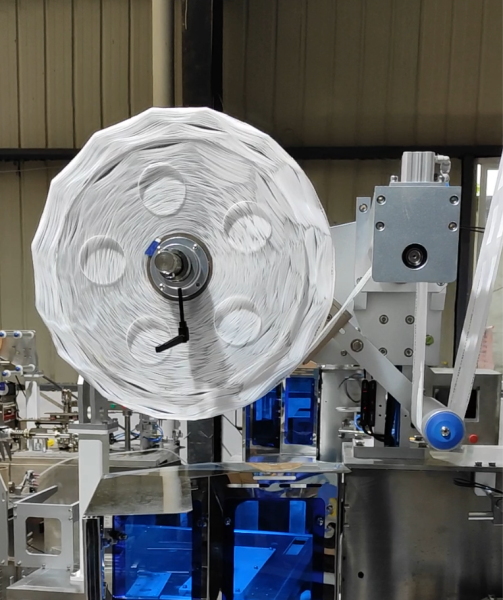

Inner film device

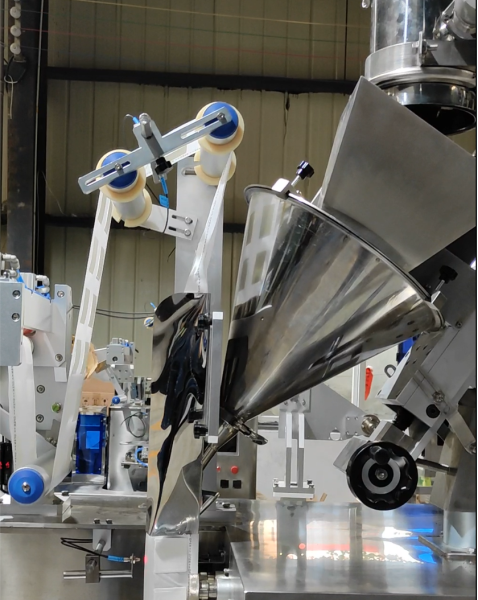

Screw feeder

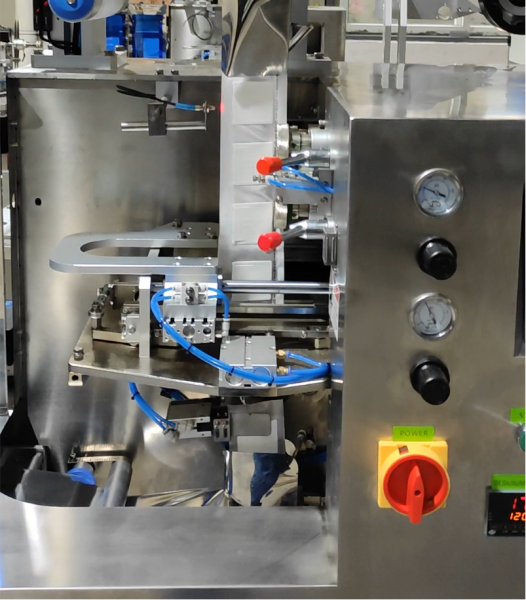

Inner bag sealing device (Ultrasonic)

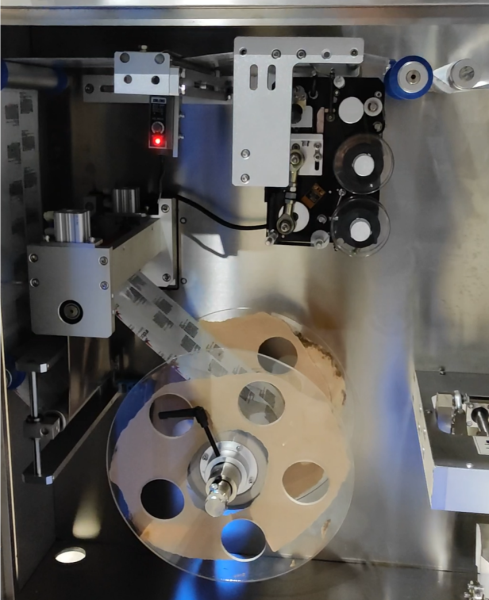

Outer film device

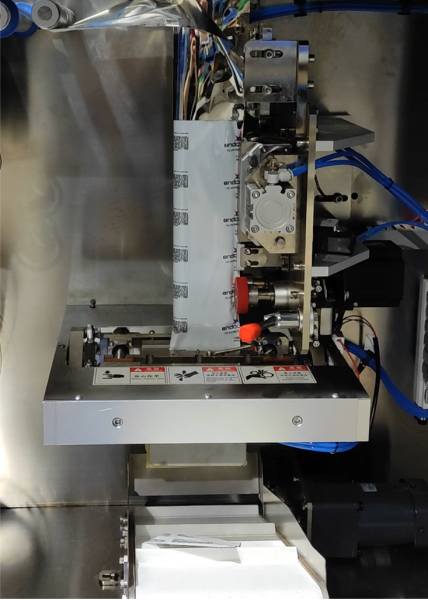

Outer bag sealing device
Coffee Product Photo：
