LQ-BG High Efficient Film Coating Machine

Short Description:

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, atomizing device and computer programming control system.It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc.

The tablets make complicated and constant movement with easy and smooth turn in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets by the spray gun at the inlet through the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure, clean hot air is supplied by the hot air cabinet and is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry and form a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.


Product Detail

Product Tags

APPLY PHOTOS

LQ-BG (1)

INTRODUCTION

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, atomizing device and computer programming control system.It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc.

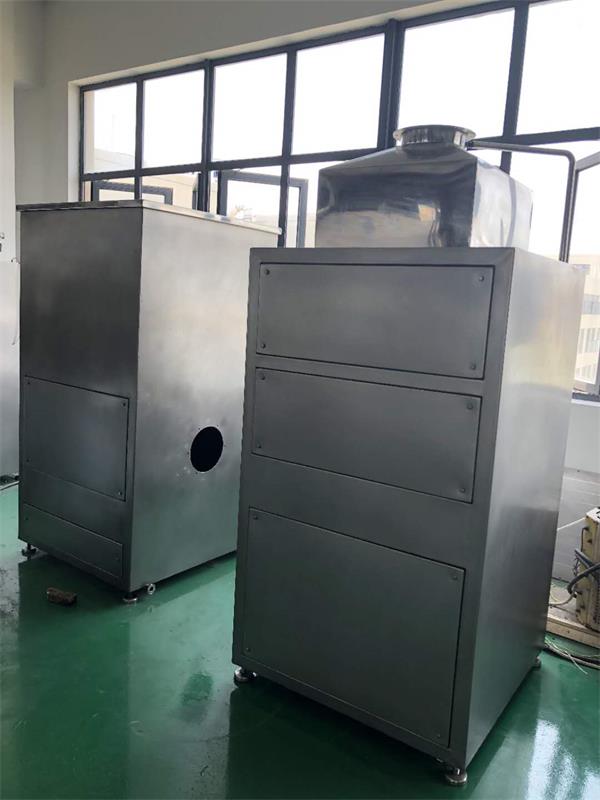

LQ-BG (6)

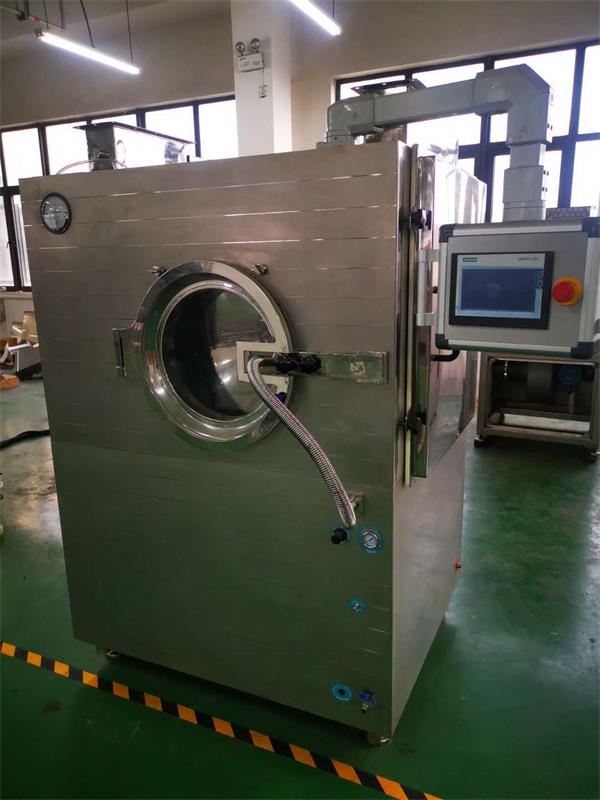

LQ-BG (3)

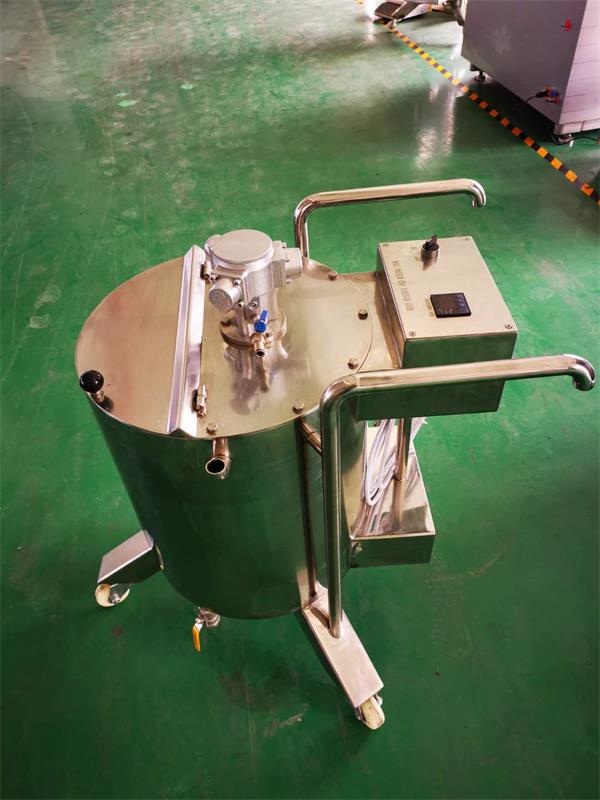

LQ-BG (4)

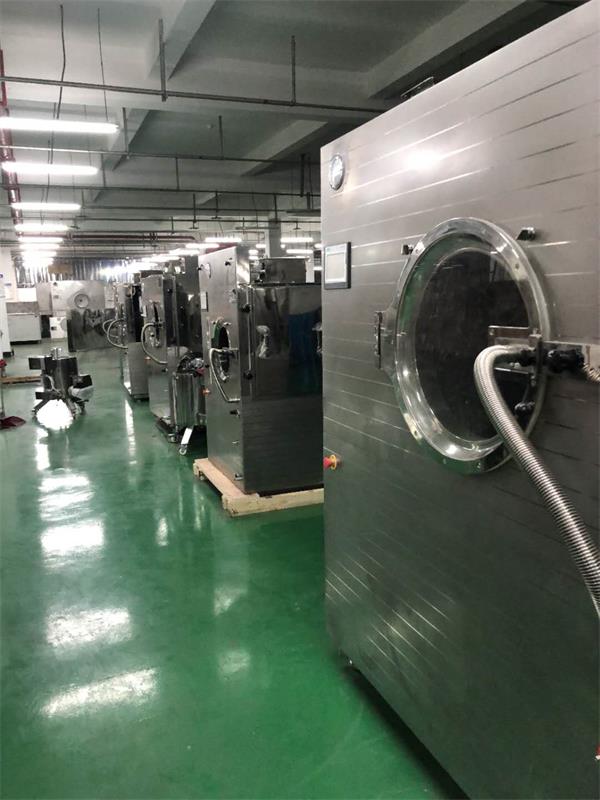

LQ-BG (5)

TECHNICAL PARAMETER

Model BG-10E BG-40E BG-80E BG-150E BG-400E BG-600E
Max. Load Capacity 40kg/batch 40kg/batch 80kg/batch 150kg/batch 400kg/batch 600kg/batch
Dia. of Coating Pan Φ500mm Φ750mm Φ930mm Φ1200mm Φ1580mm Φ1580mm
Rotatory Speed 1-25rpm 1-21rpm 1-19rpm 1-16rpm 1-13rpm 1-12rpm
Main Machine Power 0.55kw 1.1kw 1.5kw 2.2kw 3kw 5.5kw
Exhaust Cabinet Power 0.75kw 2.2kw 3kw 5.5kw 7.5kw 11kw
Hot Air Cabinet Power 0.35kw 0.75kw 1.1kw 1.5kw 2.2kw 5.5kw
Air Exhaust Flow 1285m³/h 3517m³/h 5268m³/h 7419m³/h 10000m³/h 15450m³/h
Hot Air Flow 816m³/h 1285m³/h 1685m³/h 2356m³/h 3517m³/h 7419m³/h
Main Machine Dimension(L*W*H) 900×620×1800mm 1000×800×1900mm 1210×1000×1730mm 1570×1260×2030mm 2050×1670×2360mm 2050×1940×2360mm
Hot Air Cabinet Dimension(L*W*H) 900×8600×1800mm 900×800×1935mm 900×800×1935mm 900×800×1935mm 900×800×2260mm 1600×1100×2350mm
Exhaust Cabinet Dimension (L*W*H) 600×530×1600mm 820×720×1750mm 900×820×1850mm 950×950×1950mm 1050×1050×2000mm 1050×1000×2200mm

FEATURE

The efficient coating machine consists of major machine, slurry spraying system, hot-air cabinet, exhaust cabinet, atomizing device and computer programming control system.It can be widely used for coating various tablets, pills and sweets with organic film, water-soluble film and sugar film etc. In such fields as of pharmaceutical, food and biological products etc. And it has such characteristics as good appearance in design, high efficiency, low energy consumption and small floor area, etc.
The tablets make complicated and constant movement with easy and smooth turn in a clean and closed drum of the film coating machine. The coating mixed round in the mixing drum are sprayed on tablets by the spray gun at the inlet through the peristaltic pump. Meanwhile under the action of air exhaust and negative pressure, clean hot air is supplied by the hot air cabinet and is exhausted from the fan at the sieve meshes through tablets. So these coating mediums on the surface of tablets get dry and form a coat of firm, fine and smooth film. The whole process is finished under the control of PLC.

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order,70% balance by T/T before shipping.Or irrevocable L/C at sight.

Warranty:

12 months after B/L date.
