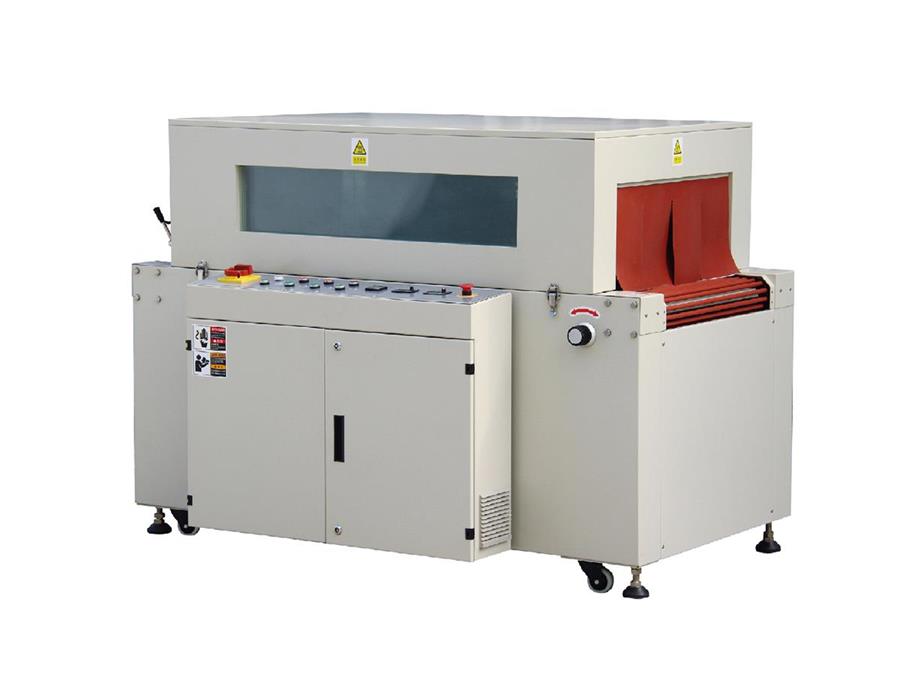

LQ-BM-500L/LQ-BM-700L Constant Temperature Shrink Tunnel

Short Description:

The machine adopts roller conveyor, high temperature resistant silicone tube each drumoutsourcing can free rotation.Stainless steel heating tube, three layers of internal insulation,bi-directional thermal cycling wind heat evenly, constant temperature.Imported double frequencyconversion, can adjust the blowing and conveying speed to achieve the best effect.With threelayers of explosion-proof glass observation window to easy watch packing result of each product.

Send email to us

Product Detail

Product Tags

TECHNICAL PARAMETER：

Model	LQ-BM-500L	LQ-BM-700L
Packing Speed	0-30 m/min	0-30 m/min
Electric Supply & Power	380V/ 50-60Hz / 16kw	380V/ 50-60Hz / 16kw
Chamber Size	(L)1500×(W)500×(H)300mm	(L)1500×(W)700×(H)300mm
Weight	470kg	530kg
Overall Dimensions	(L)1800×(W)1100×(H)1300mm	(L)1800×(W)1300×(H)1300mm
Shrink film	PE、POF、PVC、PP	PE、POF、PVC、PP
