LQ-BY Coating Pan

Short Description:

The tablet coating machine (sugar coating machine) is used to pills for pharmaceutical and sugar coating the tablets and food industries. It is also used for rolling and heating beans and edible nuts or seeds.

The tablet coating machine is widely used for making tablets, sugar-coat pills, polishing and rolling food demanded by the pharmacy industry, chemical industry, foods, research institutes and hospitals. It can also produce new medicine for research institutions. The sugar-coat tablets that are polished possess a bright appearance. The intact solidified coat is formed and the surface sugar’s crystallization can prevent the chip from oxidative deterioration volatilization and cover the improper flavor of the chip. In this way, tablets are easier to be identified and their solution inside human stomachs can be lessened.


Product Detail

Video

Product Tags

APPLY PHOTOS

LQ-BY Coating Pan  (1)

INTRODUCTION

The tablet coating machine (sugar coating machine) is used to pills for pharmaceutical and sugar coating the tablets and food industries. It is also used for rolling and heating beans and edible nuts or seeds.

The tablet coating machine is widely used for making tablets, sugar-coat pills, polishing and rolling food demanded by the pharmacy industry, chemical industry, foods, research institutes and hospitals. It can also produce new medicine for research institutions. The sugar-coat tablets that are polished possess a bright appearance. The intact solidified coat is formed and the surface sugar's crystallization can prevent the chip from oxidative deterioration volatilization and cover the improper flavor of the chip. In this way, tablets are easier to be identified and their solution inside human stomachs can be lessened.

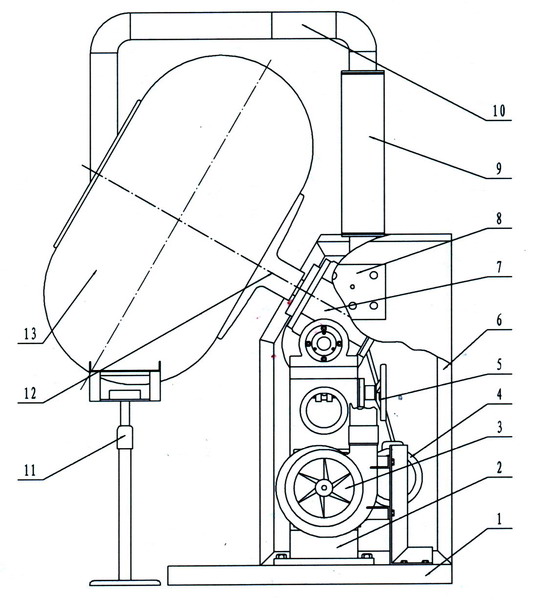

STRUCTURE

LQ-BY Coating Pan  (3)

1. Base

2. Body

3. Blower

4. Motor

5. Inclination device

6. Cover

7. Speed reducer

8. Electrical control panel

10. Wind pipe

11. External heating device

12.Tray

13. Pot

TECHNICAL PARAMETER

Model BY600 BY800 BY1000 BY1250
Dia. of Pot 600mm 800mm 1000mm 1250mm
Capacity 5~15kg 30~50kg 50~70kg 90~150kg
Speed 32r/min 32r/min 32r/min 30r/min
Motor Power 0.75kw 1.1kw 1.5kw 2.2kw
Blower Power 0.12kw 0.2kw 0.2kw 0.55kw
Total Power 1.87kw 3.3kw 3.7kw 4.75kw
Voltage 380V/50Hz/3Ph 380V/50Hz/3Ph 380V/50Hz/3Ph 380V/50Hz/3Ph
Overall Dimension
(L*W*H)
780×600×1360mm 1100×800×1680mm 1150×1000×1680mm 1340×1250×1680mm
Weight 115kg 270kg 280kg 400kg

FEATURE

The coating pan rotates clockwise. Compound syrup and mix slurry is jetted into the pot by several times and they are coated on the chips. The sugar coated tablets rotate in the pot. At the same time, tablet surface moisture is moved by the wind and we can get qualified sugar coated pills.

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order,70% balance by T/T before shipping. Or irrevocable L/C at sight.

Warranty:

12 months after B/L date.
