LQ-DC-1 Drip Coffee Packaging Machine (Standard Level)

Short Description:

This packaging machine is suitable for drip coffee bag with outer envelope,and it is available with coffee, tea leaves, herbal tea, health care tea, roots, and other small granule products. The standard machine adopts the fully ultrasonic sealing for inner bag and heating sealing for outer bag.


Product Detail

Video

Product Tags

APPLY PHOTOS

Standard Level (3)

INTRODUCTION

This packaging machine is suitable for drip coffee bag with outer envelope,and it is available with coffee, tea leaves, herbal tea, health care tea, roots, and other small granule products. The standard machine adopts the fully ultrasonic sealing for inner bag and heating sealing for outer bag.

Standard Level (1)
Standard Level (7)
Standard Level (4)
Standard Level (6)
Standard Level (5)

TECHNICAL PARAMETER

Machine name LQ-DC-1 Drip Coffee Packaging Machine (Standard Level)
Working speed 20-35 bags/min
Bag size Inner bag:  L 90mm * W 70mm
Outer bag:  L 120mm * W 100mm
Envelope type Three sides sealing
Sealing method Inner bag: Ultrasonic sealing
Outer bag: Heat sealing
Weighing system Screw filling system
Weighing arrange 8-12 ml/bag
Filling accuracy ± 0.2 grams/bag (It depends on the coffee material)
Power supply 220V,50Hz,1Ph
Weight 495 kg
Overall dimensions (L*W*H) 1440mm * 1080mm * 2220mm

FEATURE

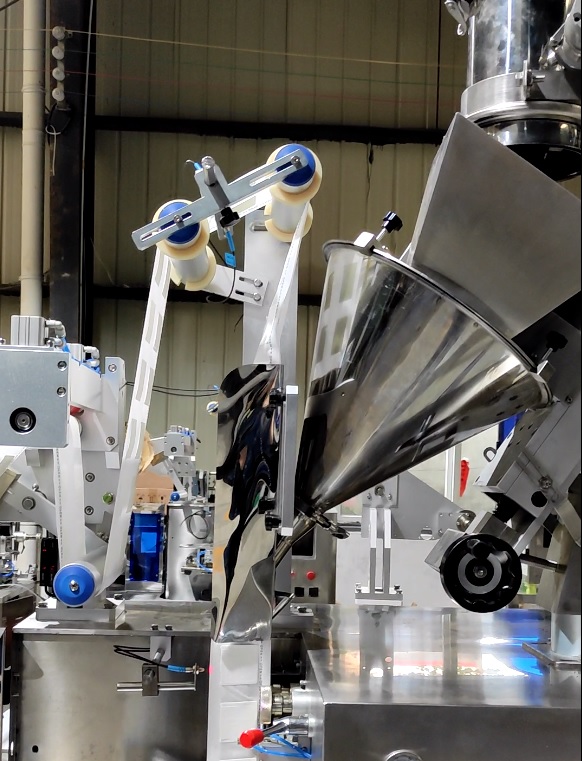

1. Oblique type screw feeder, no stuck, high accuracy and easy to adjust.

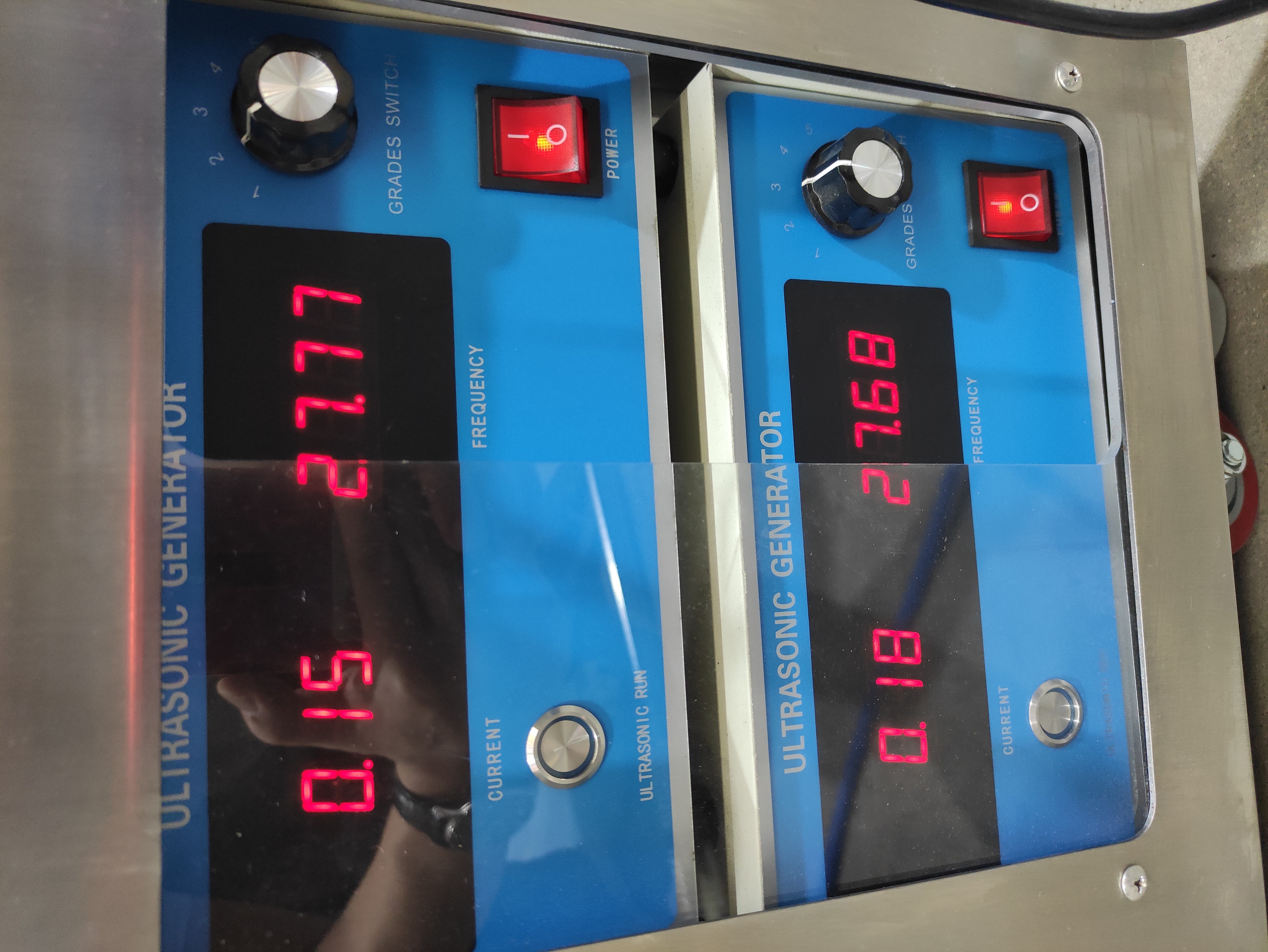

2. 3-side ultrasonic sealing, makes better packaging performance.

3. Adopts with safety guard door which protects machine better and provides the safety protection for the workers as well.

4. With special design of outer air blowing system, effectively avoided the problem of “wrinkle”.

5. Using PLC to control the action of the whole machine, display on the man-machine interface, easy to operate.

6. All parts which is contacted with material is made of SUS304 stainless steel to ensure the sanitation and reliability of the product.

7. Adopt air cylinder bag clamping mechanism to make the inner bag cutting and sealing more straight and beautiful.

8. Ultrasonic sealing is suitable for cutting all non-woven packaging materials, and the cutting success rate is close to 100%.

9. High-precision electro-mechanical system with more stable performance.

TERMS OF PAYMENT AND WARRANTY

Terms of Payment: 30% deposit by T/T when confirming the order,70% balance by T/T before shipping. Or irrevocable L/C at sight.

Delivery Time: 30 days after receiving deposit.

Warranty: 12 months after B/L date.
