LQ-SLJS Electronic Counter

Short Description:

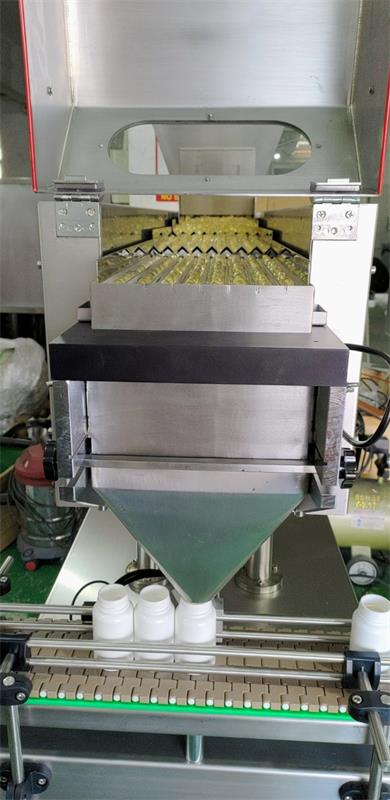

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position, waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.


Product Detail

video1

video2

Product Tags

APPLY PHOTOS

LQ-SLJS Electronic Counter  (5)
LQ-SLJS Electronic Counter  (4)

PRODUCTION DESCRIPTION

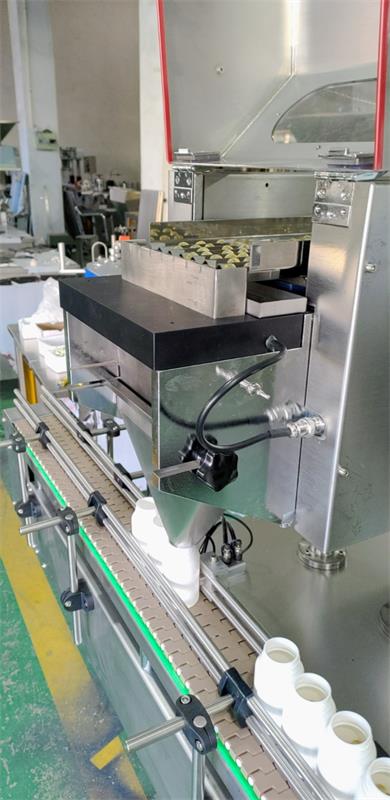

The block bottle device on the passing bottle-track of the conveying bottle system make the bottles which came from the previous equipment stay in the bottling position, waiting to be filled in. The medicine goes into the medicine container in order by the vibration of the feeding corrugated plate. There’s a counting photoelectric sensor installed on the medicine container, after counting of the medicine in the medicine container by the counting photoelectric sensor, the medicine goes into the bottle in the bottling position.

LQ-SLJS Electronic Counter  (2)
LQ-SLJS Electronic Counter  (3)

TECHNICAL PARAMETER

Model

LQ-SLJS 4-HEAD ELECTRONIC COUNTER

LQ-SLJS 8-HEAD ELECTRONIC COUNTER

If you need higher speed machine, please feel free to contact with me.

Capacity

About 20-25 bottles/min

About 30-35 bottles/min

Loading range

1-9999 granules/tablets adjustable

1-9999 granules/tablets adjustable

Voltage

220V,50Hz,1Ph

220V,50Hz,1Ph

Power

0.6kw

0.6kw

Bottle size

10~500ml round/flat bottle

10~500ml round/flat bottle

Counting accuracy

More than 99.5%

More than 99.5%

Air source

0.6 Mpa

0.6 Mpa

FEATURE

● Strong compatibility,It can count and bottle various kind of solid preparation or solid granules for example, tablet, capsule, soft capsule (transparent and non-transparent), pill etc.

● Vibration cutting: channel vibration under homogeneous materials, unique patent agencies blanking, turning out material is steady, not damage

● Anti high dust: Adopting the anti high dust photoelectric sensing technology only developed by our company, it also can work stably under the high dust circumstance.

● Correct counting: With automatic photoelectric sensor counting, the error of bottling is little.

● High intelligence: It has various alarm and control functions like no bottle no count.

● Easy operation: Adopting intellectualized design, all kinds of operation data can be set according to the requirement.

● Convenient maintenance: After simple training, the worker can operate easily. It is easy to disassembly, clean and change the components without any tools.

● Sealing and dust-proof: For tablet with high dust,dust collection box is available, it can reduce the dust pollution. (Optional)

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order,70% balance by T/T before shipping. Or irrevocable L/C at sight.

Warranty:

12 months after B/L date.
