LQ-TH-400+LQ-BM-500 Automatic side sealing shrink wrapping machine

Short Description:

Automatic side sealing shrink wrapping machine is an intermediate speed type automatic sealing and cutting heat shrink packing machine which we design and produce in the high-speed automatic edge sealing machine basis, according to the different needs of the domestic market and customers. It uses photoelectric to automatically detect products, achieve automatic unmanned packing and high efficiency, and it is suitable for all kinds of packaging products with different sizes and shapes.


Product Detail

Product Tags

Model LQ-TH-400 LQ-BM-500
Max Packing Size L: No limited W≤400mm
(H)≤180(W+H)≤400mm
(L)700×(W)400×(H)200 mm
Max Sealing Size L: No limited W≤400mm (L)1000×(W)450 ×(H)250 mm
Packing Speed 20-40 packs/min 0-15 m/min.
Electric Supply & Power 220V/50Hz ,1.3kw 380V / 50Hz,12 kw
Air Pressure 5.5kg/cm³ /
Weight 450kg 240kg
Overall Dimensions (L)1820×(W)1035×(H)1500mm (L)1300×(W)700×(H)1400 mm

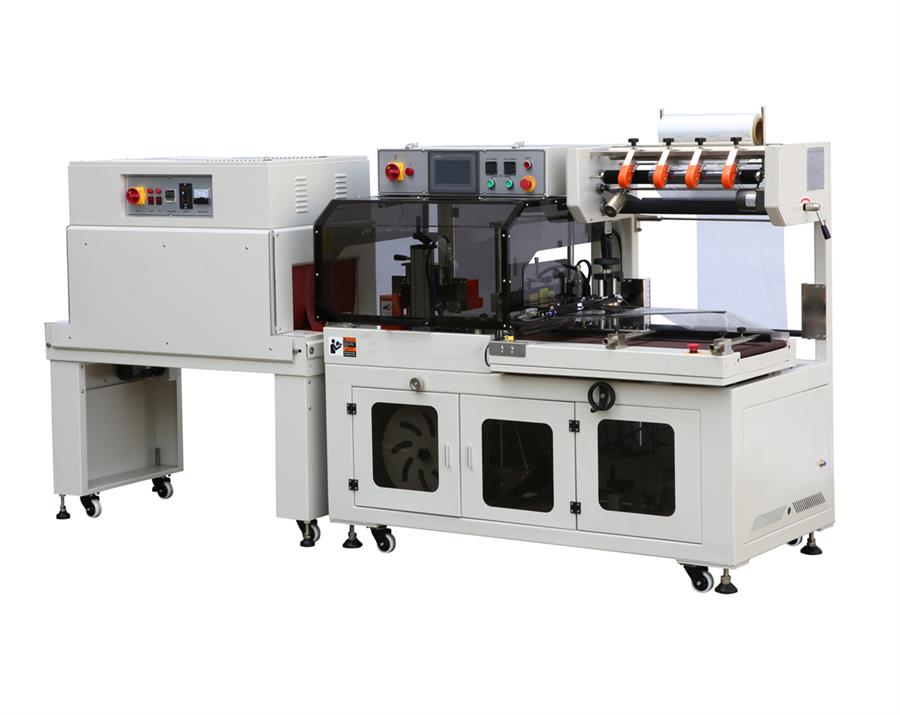

Automatic side sealing shrink wrapping machine
LQ-TH-400+LQ-BM-500 Automatic side sealing shrink wrapping machine-2
