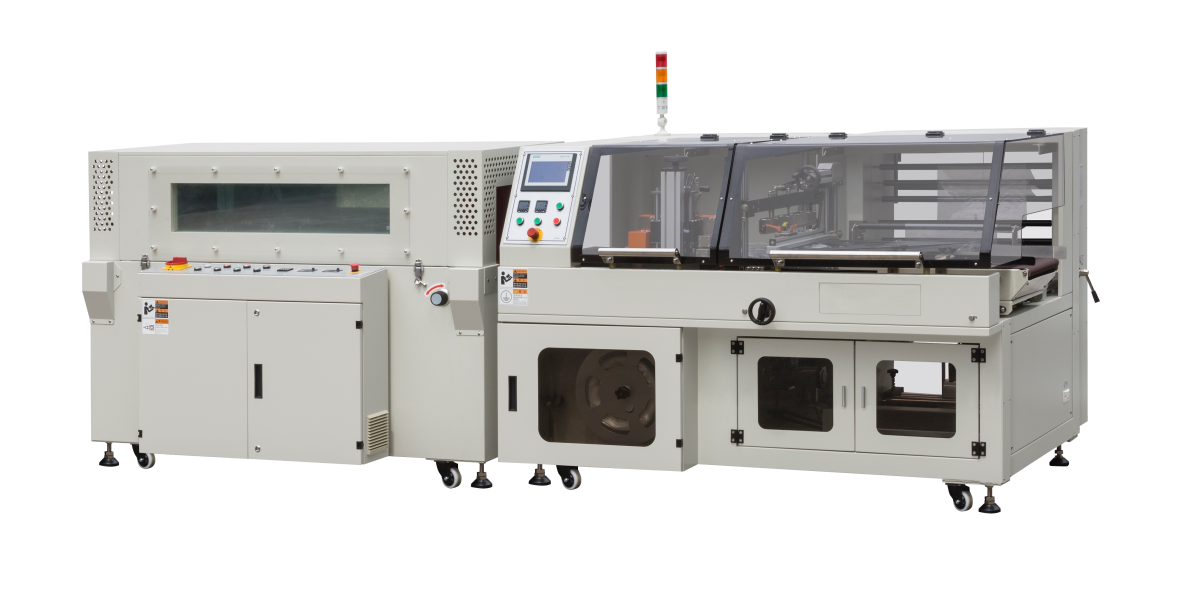

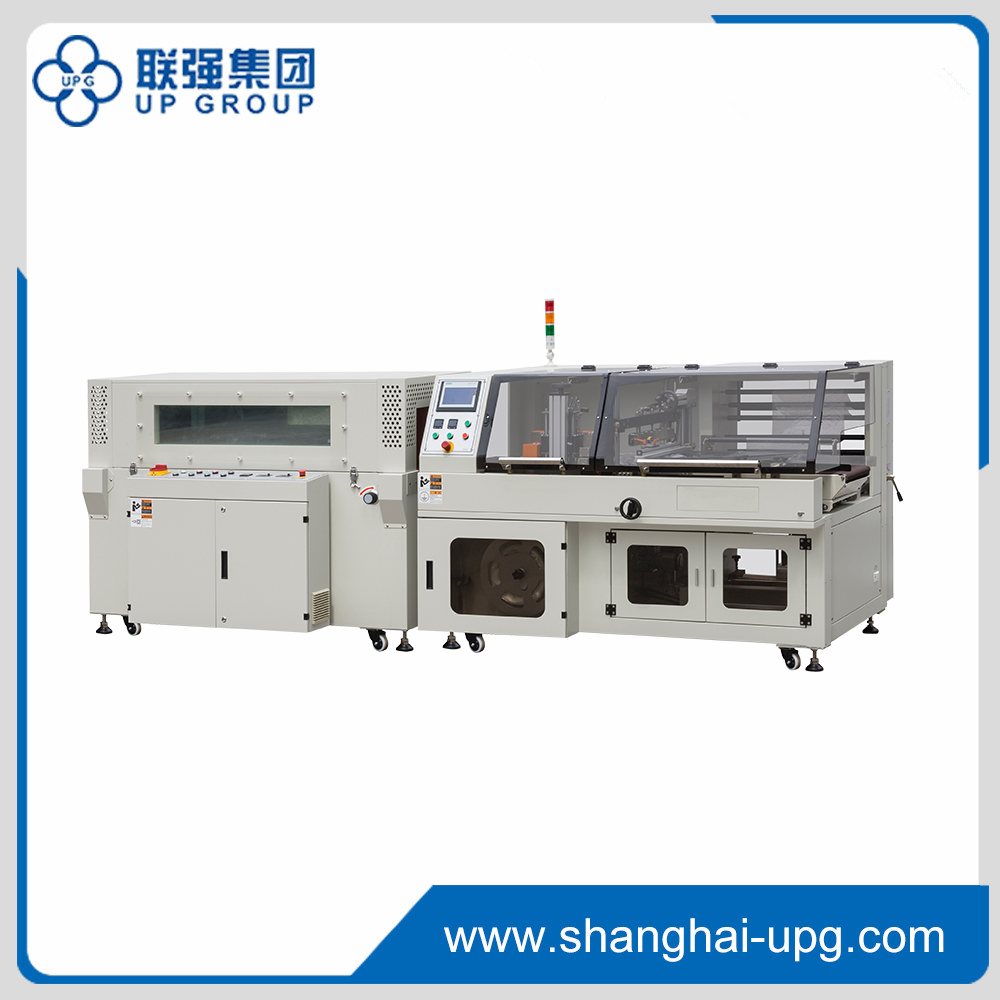

LQ-TH-450A+LQ-BM-500L Automatic High Speed Sealiing Wrapping Machine

Short Description:

This machine adopts imported touch screen, all kinds of settings and operations can be easily completed on the touch screen. At the same time, it can store a variety of product data in advance, and only need to call out the parameters from the computer. The servo motor controls the sealing and cutting to ensure the accurate positioning and excellent sealing and cutting line. At the same time, the side sealing design is adopted, and the product packaging length is unlimited.

Send email to us

Product Detail

Product Tags

Automatic High Speed Sealiing Wrapping Machine

Technical Data:

Model	BTH-450A	BM-500L
Max. Packing Size	(L)No limited (W+H)≤400 (H)≤200mm	(L)No limited x(W)450 x(H)250mm
Max. Sealing Size	(L)No limited (W+H)≤450mm	(L)1500x(W)500 x(H)300mm
Packing Speed	30-50 packs/min.	0-30 m/min.
Electric Supply & Power	380V 3 phase/ 50Hz 3 kw	380V / 50Hz 16 kw
Max Current	10 A	32 A
Air Pressure	5.5 kg/cm3	/
Weight	930 kg	470 kg
Overall Dimensions	(L)2070x(W)1615 x(H)1682mm	(L)1800x(W)1100 x(H)1300mm

Features:

1.With side sealing design, side sealing knife can seal continuously, and the length of packaged products is not limited, so that the packaging range is wider;

2.The height of side sealing and horizontal sealing can be adjusted up and down, and the sealing line can be adjusted to the center position according to the height of the package to make the product packaging more beautiful;

3.INOVANCE PLC programmable controller and touch screen control are adopted, and various settings and operations can be easily completed on the touch screen; At the same time, a variety of product data can be stored in advance, and only the parameters from the touch screen can be used;

4.INOVANCE frequency converter is used to control the motor of feeding conveying, discharging side sealing conveying, film releasing conveying and film collecting conveying; Panasonic servo motor is used to control the transverse sealing knife to ensure accurate positioning and beautiful sealing and cutting lines. All devices can be frequency controlled, and the packaging speed can reach 30-60 bags / min;

5.The sealing knife adopts DuPont Teflon anti sticking coating, so the sealing will not crack and coking; The cutter has automatic protection function, which can prevent the package from being cut by mistake;

6.Equipped with imported USA Banner photoelectric of horizontal and vertical detection for choice to easily finish the sealing of thin and small items;

7.By adjusting the height of the film guide device and the feeding conveyor platform, the products with different widths and heights can be packaged without changing the mold and bag maker;

8.LQ-BM-500L adopts downward heating multi-directional circulating air shrinkage, equipped with double frequency control, which can adjust the air blowing volume and conveying speed at will. It adopts roller conveyor belt and roller wrapped with high temperature resistant silicone tube, each of which can rotate freely to achieve the best shrink effect;

9.With tight connection function, it is specially designed for small packaging products.
