LQ-TH-450GS+LQ-BM-500L Fully-Automatic High Speed Reciprocating Heat Shrink Wrapping Machine

Short Description:

Adopts advanced side sealing and reciprocating type horizontal sealing techology. Have continuous sealing actions. Servo control series.Could realize excellent shrink packagingin the condition of high effeciency.Servo motor control the actions. During the high speed running procession. The machine will act stable, realiable and make the products dliverysmoothly during the continuous packaging. To avoid the suituation that products slided and displaced.


Product Detail

Product Tags

TECHNICAL PARAMETER:

Model LQ-TH-450GS LQ-BM-500L
Max. Packing Size (L)No limitation (W+H)≤400mm (H)≤150mm (L)No limited x(W)450 x(H)250mm
Max. Sealing Size (L)No limitation (W+H)≤450mm (L)1500x(W)500 x(H)300mm
Packing Speed 40-120 packs/min 0-30 m/min.
Electric Supply & Power 220V/50Hz/5kw 380V/50Hz/16kw
Max Current 10 A 32 A
Air Pressure 6kg/cm³ /
Weight 1200 kg 470 kg
Overall Dimensions (L)2610×(W)1410×(H)1300mm (L)1800x(W)1100 x(H)1300mm

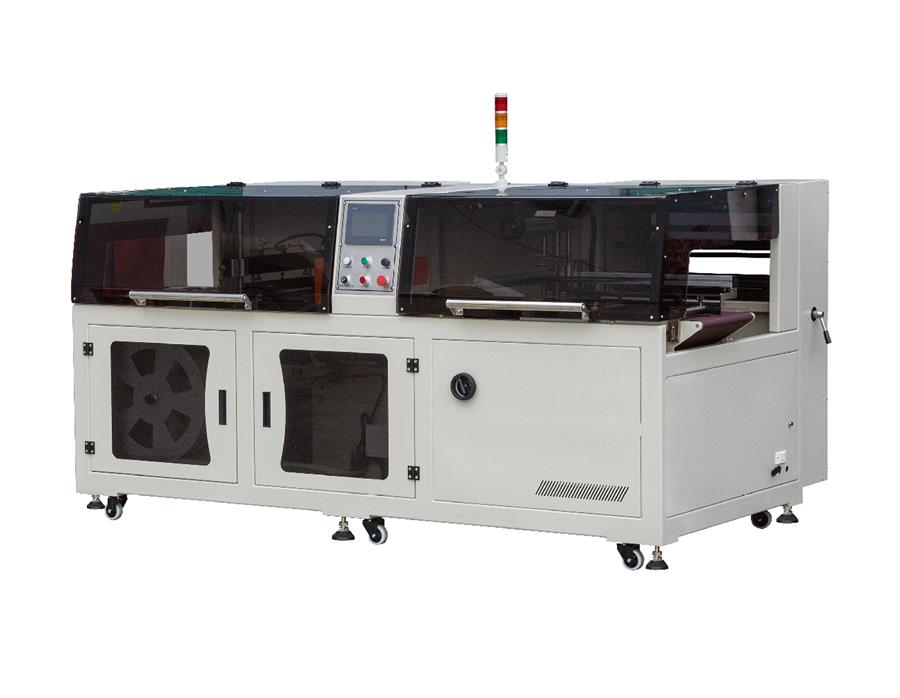

Fully-Automatic High Speed Reciprocating Heat Shrink Wrapping Machine
LQ-TH-450GS+LQ-BM-500L Fully-Automatic High Speed Reciprocating Heat Shrink Wrapping Machine-1
