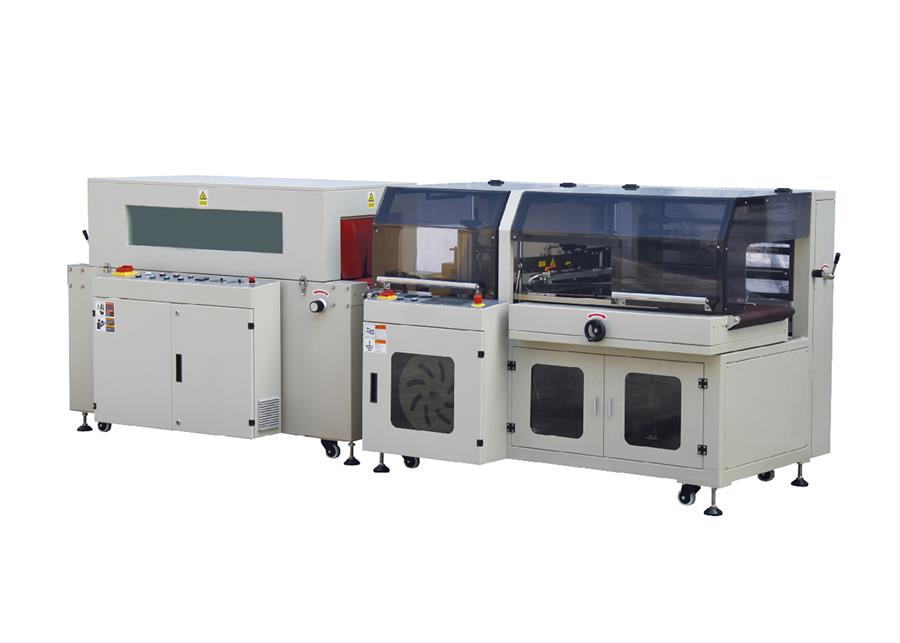

LQ-TH-550+LQ-BM-500L Automatic side sealing shrink wrapping machine

Short Description:

This machine is suitable for packing long items (such as wood, aluminum, etc.). It adopts the most advanced Imported PLC programmable controller, with safety protection and alarm device, to ensure the machine high-speed stability. A variety of Settings can be easily completed on the touch screen operation. Use side sealing design, there is no limit of product packaging length. The sealing line height can be adjusted according to the packing product height. It is equipped with imported detection photoelectric, horizontal and vertical detection in one group, with easy to switch selection.


Product Detail

Product Tags

TECHNICAL PARAMETER:

Model LQ-TH-550 LQ-BM-500L
Max. Packing Size (L)No limited (W+H)≤550 (H)≤250mm (L)No limited x(W)450 x(H)250mm
Max. Sealing Size (L)No limited (W+H)≤550 (L)1500x(W)500 x(H)300mm
Packing Speed 1-25 packs/min. 0-30 m/min.
Electric Supply & Power 220V/50Hz/3kw 380V/50Hz/16kw
Max Current 6 A 32 A
Air Pressure 5.5 kg/cm³ /
Weight 650 kg 470 kg
Overall Dimensions (L)2000x(W)1270 x(H)1300mm (L)1800x(W)1100 x(H)1300mm
Automatic side sealing shrink wrapping machine
LQ-TH-550+LQ-BM-500L Automatic side sealing shrink wrapping machine-1
