LQ-XKS-2 Automatic Sleeve Shrink Wrapping Machine

Short Description:

Automatic sleeve sealing machine with shrink tunnel is suitable for shrink packaging of the beverage, beer, mineral water, pop-top cans and glass bottles etc without tray. Automatic sleeve sealing machine with shrink tunnel is designed for packing single product or combined products without tray. the equipment can be connected with the production line to complete feeding, film wrapping, sealing & cutting, shrinking and cooling automatically. There are various packing modes available. For combined object, the bottle quantity can be 6, 9, 12, 15, 18, 20 or 24 etc.


Product Detail

video

Product Tags

APPLY PHOTOS

LQ-XKS-2  (2)

INTRODUCTION

Automatic sleeve sealing machine with shrink tunnel is suitable for shrink packaging of the beverage, beer, mineral water, pop-top cans and glass bottles etc without tray. Automatic sleeve sealing machine with shrink tunnel is designed for packing single product or combined products without tray. the equipment can be connected with the production line to complete feeding, film wrapping, sealing & cutting, shrinking and cooling automatically. There are various packing modes available. For combined object, the bottle quantity can be 6, 9, 12, 15, 18, 20 or 24 etc.

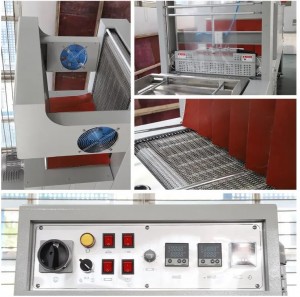

LQ-XKS-2  (3)

TECHNICAL PARAMETER

Power supply AC 380V/50Hz
Compressed air 60Lt/min
Power 18.5kw
Max. package size 450mm*320mm*200mm
Max.film width 600mm
Packaging speed 8-10pcs/min
Cutting length 650mm
Cutting time range 1.5-3s
Temperature range 150-250℃
Film thickness 40-80μm
Shrink tunnel size 1500mm×600mm×250mm
Machine size 3600mm×860mm×2000mm
Weight 520kg

FEATURE

Shrink machine:

1. Designed based on advanced technology and artwork introduced from abroad to ensure stability and reliability of equipment.

2. The conveying belt can be set for left feed-in or right feed-in as required.

3. The machine can pack 2, 3 or 4 rows of bottles with or without tray. Only need to turn the switchover switch on the panel when you wants to change the packing mode.

4. Adopt the worm gear reducer, which ensures the stable conveying and film feeding

Shrink tunnel:

1. Adopt double blowing motors for BS-6040L to guarantee even heat inside the tunnel, which leads to good appearance of package after shrinking.

2. The adjustable hot air guide flow frame inside the tunnel makes it more energy saving.

3. Adopt solid steel roller covered with silicone gel pipe, chain conveying, and durable silicone gel.

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order,70% balance by T/T before shipping. Or irrevocable L/C at sight.

Warranty:

12 months after B/L date
