LQ-YL Desktop Counter

Short Description:

1.The number of counting pellet can be arbitrarily set from 0-9999.

2. Stainless steel material for whole machine body can meet with GMP specification.

3. Easy to operate and no special training required.

4. Precision pellet count with special electrical eye protection device.

5. Rotary counting design with fast and smooth operation.

6. The rotary pellet counting speed can be adjusted steplessly according to putting speed of the bottle manually.


Product Detail

video

Product Tags

APPLY PHOTOS

LQ-YL Desktop Counter (2)
LQ-YL Desktop Counter (1)

INTRODUCTION

1.The number of counting pellet can be arbitrarily set from 0-9999.
2. Stainless steel material for whole machine body can meet with GMP specification.
3. Easy to operate and no special training required.
4. Precision pellet count with special electrical eye protection device.
5. Rotary counting design with fast and smooth operation.
6. The rotary pellet counting speed can be adjusted steplessly according to putting speed of the bottle manually.
7. The machine is quipped with dust cleaner to avoid the dust effect on the machine.
8. Vibration feeding design, the vibration frequency of the particle hopper can be adjusted with step-less based on the needs of the medical pellet,
9. LQ-YL-2 : once start with one bottle and automatically to count the next when finished, easy to pick up and put down the bottle by hand.
10. LQ-YL-4 : once start with two bottles and automatically to count the next two bottles when finished, easy to pick up and put down the bottle by two hands and the speed is one time faster.

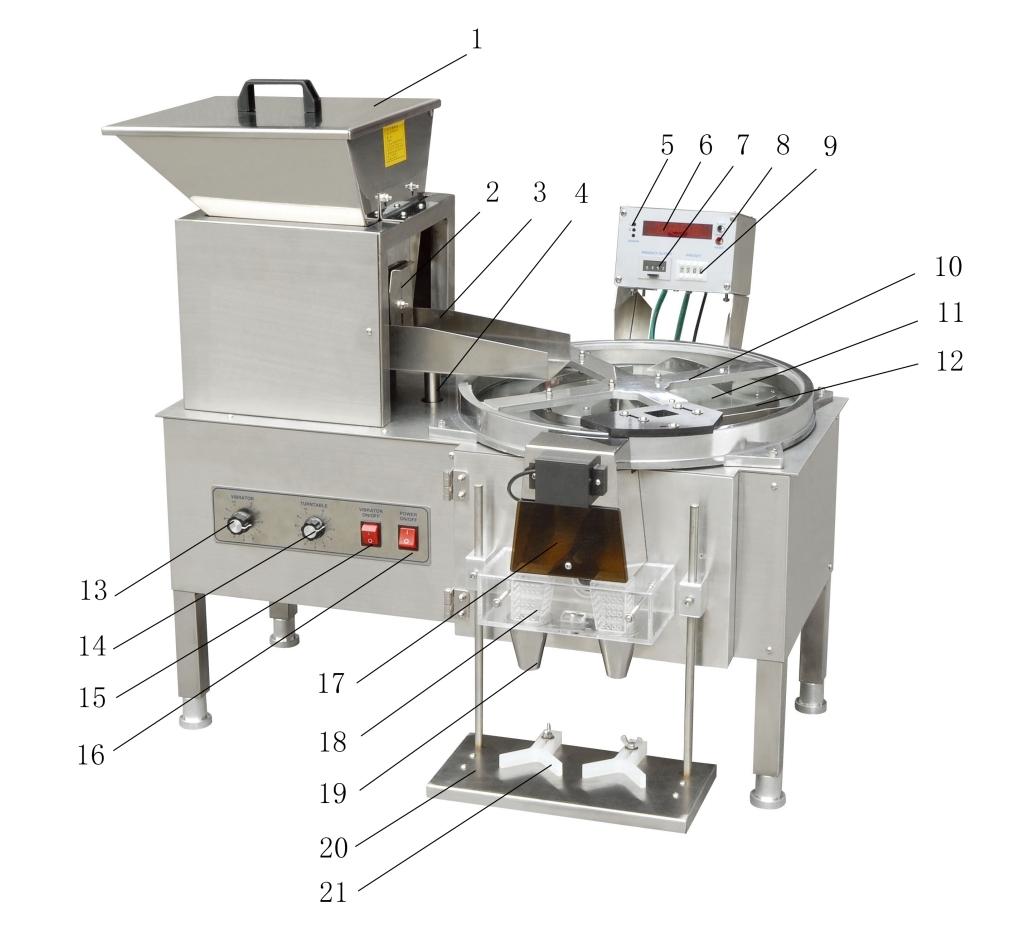

DRAWING OF LQ-YL-2 COUNTER

LQ-YL Desktop Counter (4)

1

Hopper

2

Baffle

3

Groove of vibrating feeder

4

Vibrator

5

Indicator

6

Display

7

Bottle counter

8

Return to zero

9

Tablet number set

10

Spiral

11

Glass disc

12

Orbit

13

Vibration governor

14

Rotation governor

15

Vibrator switch

16

Main switch

17

Electric eye

18

Acrylic powder collector

19

Material outlet

20

Y locator

21

Bottle height modulator





TECHNICAL PARAMETER

Model LQ-YL-2A LQ-YL-2 LQ-YL-4
Capacity 500-1500pcs/min 1000-1800pcs/min 2000-3500pcs/min
Overall Dimension(L*W *H) 427mm*327mm*525mm 760mm*660mm*700mm 920mm*750mm*810mm
Voltage 110-220V,50Hz-60Hz,1Ph 110-220V,50Hz-60Hz,1Ph 110-220V,50Hz-60Hz,1Ph
Net Weight 35kg 50kg 85kg

TERMS OF PAYMENT AND WARRANTY

Terms of Payment: 100% payment by T/T when confirming the order. Or irrevocable L/C at sight.

Delivery Time: 10 days after receiving deposit.

Warranty: 12 months after B/L date.
