LQ-ZHJ Automatic Cartoning Machine

LQ-ZHJ Automatic Cartoning Machine Featured Image
  • LQ-ZHJ Automatic Cartoning Machine

Short Description:

This machine is suitable for packing blisters, tubes, ampules and other related objects into boxes. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time. This machine can be used separately and also can be linked with other machines to be a production line. This machine can also be equipped with hot melt glue device to do hot melt glue sealing for box.


Product Detail

video

Product Tags

APPLY PHOTOS

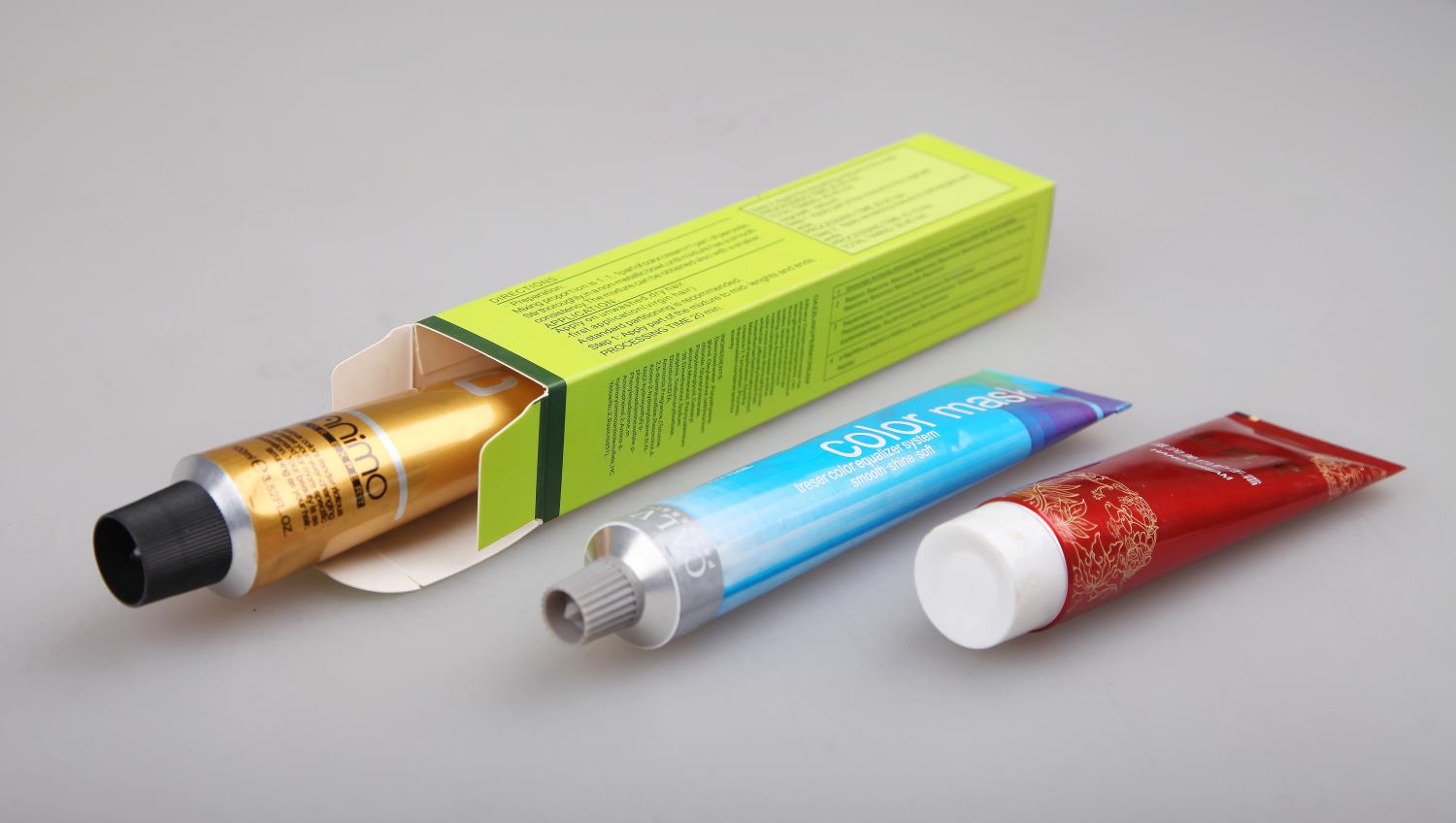

Cartoning Machine (1)

INTRODUCTION

This machine is suitable for packing blisters, tubes, ampules and other related objects into boxes. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time. This machine can be used separately and also can be linked with other machines to be a production line. This machine can also be equipped with hot melt glue device to do hot melt glue sealing for box.

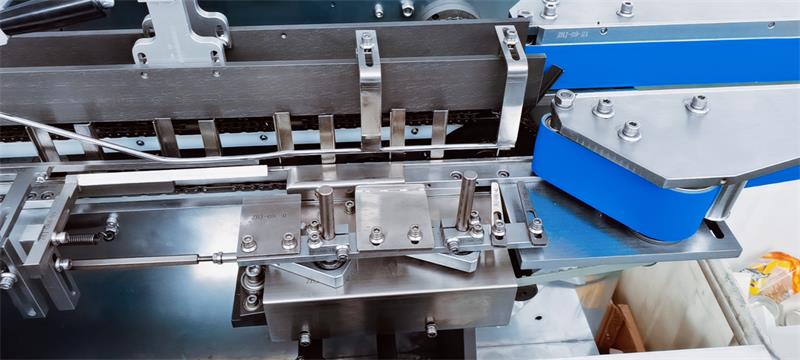

Cartoning Machine (2)

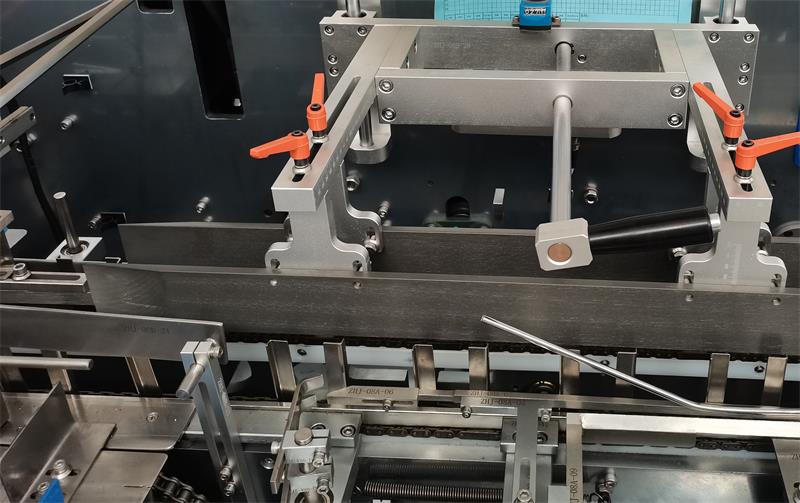

Cartoning Machine (3)

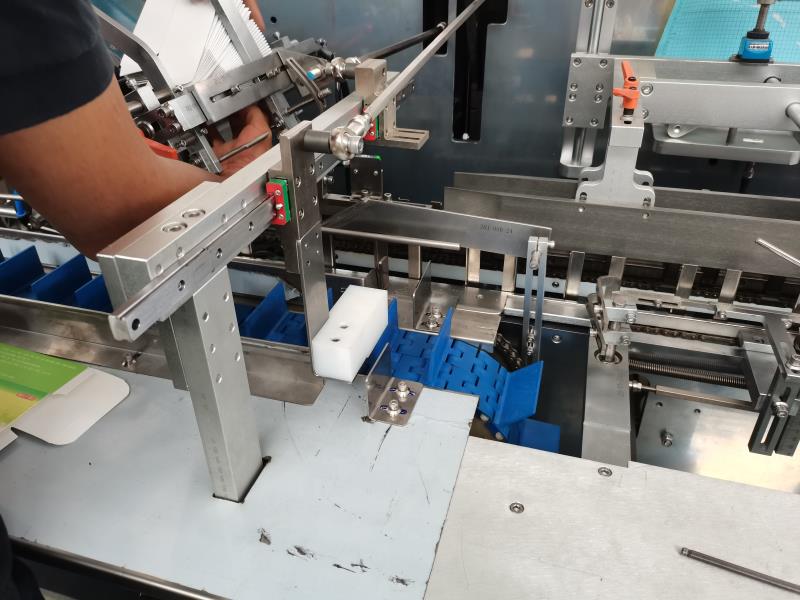

Cartoning Machine (4)

TECHNICAL PARAMETER

Model LQ-ZHJ-120 LQ-ZHJ-200 LQ-ZHJ-260
Production capacity 120 boxes/min 200 boxes/min 260 boxes/min
Max. Size of Box 200*120*70 mm 200*80*70 mm 200*80*70 mm
Min. Size of Box 50*25*12 mm 65*25*15 mm 65*25*15 mm
Specification of Box 250-300 g/m2 250-300 g/m2 250-300 g/m2
Max. Size of Leaflet 260*180 mm 560*180 mm 560*180 mm
Max. Size of Leaflet 110*100 mm 110*100 mm 110*100 mm
Specification of Leaflet 55-65 g/m2 55-65 g/m2 55-65 g/m2
Volume of Air Consumption 20 m³/h 20 m³/h 20 m³/h
Total Power 1.5 kw 4.1 kw 6.9 kw
Voltage 380V/50Hz/3Ph 380V/50Hz/3Ph 380V/50Hz/3Ph
Overall Dimension (L*W*H) 3300*1350*1700 mm 4500*1500*1700 mm 4500*1500*1700 mm
Weight 1500 kg 3000 kg 3000 kg

FEATURE

1. It has advantages of high packing efficiency and good quality.

2. This machine can fold leaflet, open box, insert blister into box, emboss batch number and close box automatically.

3. It adopts frequency inverter to adjust speed, human machine interface to operate, PLC to control and photoelectric to supervise and control each station the reasons automatically, which can solve the troubles in time.

4. This machine can be used separately, and also can be linked to other machine to be a production line.

5. It can also equip with hot melt glue device to do hot melt glue sealing for box. (Optional)

TERMS OF PAYMENT AND WARRANTY

Terms of Payment:

30% deposit by T/T when confirming the order，70% balance by T/T before shipping. Or irrevocable L/C at sight.

Warranty:

12 months after B/L date.
